Components Required:

For Designing a RAM Cell

To build a RAM Cell, we need :

1. AND Gate(3 input)-3
2. NOT Gate-2
3. RS Flip Flop-1

For Designing a 4X3 RAM

To build a 4X3 RAM, we need :

1. OR Gate(2 input)-11
2. RAM Cell-12
3. 2X4 Decoder with Enable-1

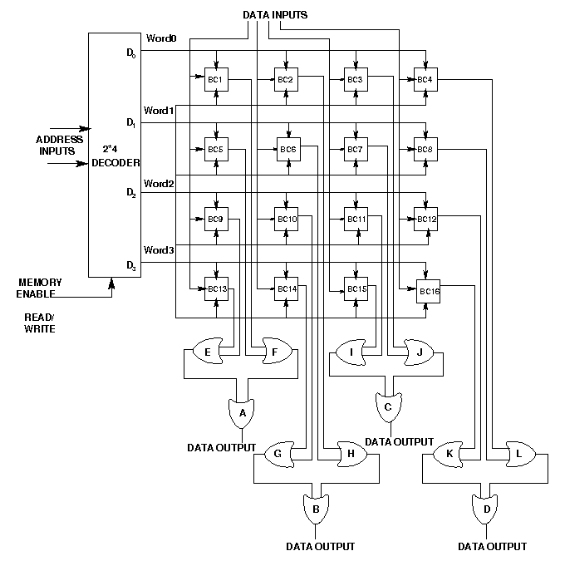

Circuit Diagram of 4 x 3 RAM Memory:

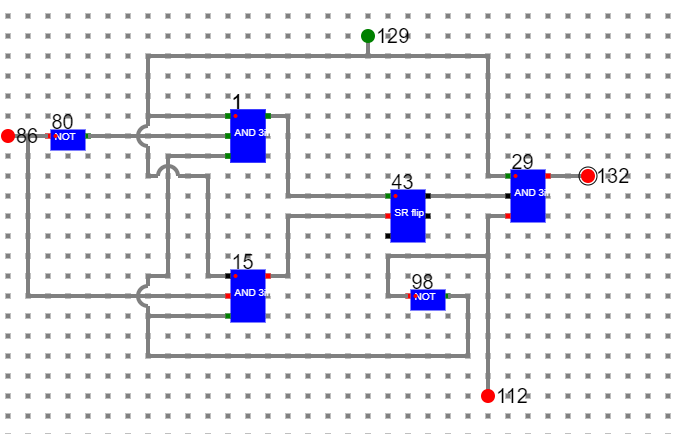

Circuit of a RAM Cell on simulator:

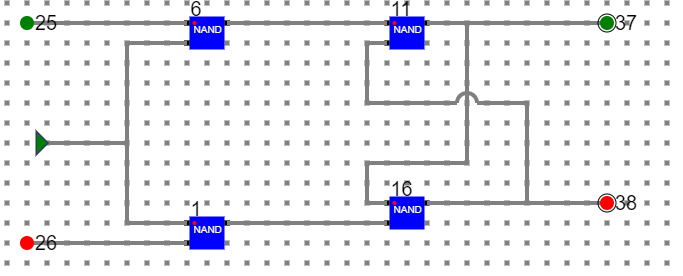

Circuit of SR Flipflop:

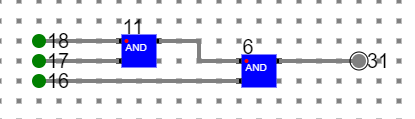

Circuit for 3 Input AND Gate:

• Follow the below manual and perform the experiment
  • Manual --> Click Here
